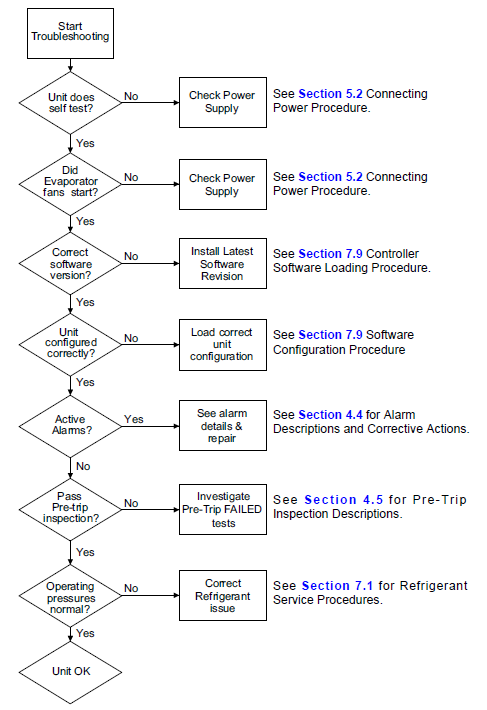

6.1Unit will not Start or Starts then Stops
|
|
No power to unit
|
External power source OFF
|
Turn on
|
|
Start-Stop switch (ST) OFF or defective
|
Check
|
|
Circuit breaker tripped or OFF
|
Check
|
|
Loss of control power
|
Circuit breaker OFF or defective
|
Check
|
|
Control transformer defective
|
Replace
|
|
Fuse (F3 / F4) blown
|
Check
|
|
Start-Stop switch (ST) OFF or defective
|
Check
|
|
Component(s) not operating
|
Evaporator fan motor internal protector open
|
Section 7.6
|
|
Condenser fan motor internal protector open
|
Section 7.3
|
|
Compressor internal protector open
|
Section 7.2
|
|
High Pressure Switch (HPS) open
|
Section 6.7
|
|
Heat Termination Thermostat (HTT) open
|
Replace
|
|
Current sensor malfunction
|
Replace
|
|
6.2Unit Operates Long or Continuously in Cooling
|
|
Container
|
Hot load
|
Normal
|
|
Box insulation defective or air leak
|
Repair
|
|
Refrigeration system
|
Refrigerant shortage
|
Section 7.1.6
|
|
Evaporator coil covered with ice
|
Section 6.6
|
|
Evaporator coil plugged with debris
|
Section 7.6
|
|
Evaporator fan(s) rotating backwards
|
Section 7.6
|
|
Air bypass around evaporator coil
|
Check
|
|
Controller set too low
|
Reset
|
|
Compressor service valves or liquid line shutoff valve partially closed
|
Open valves completely
|
|
Condenser dirty
|
Section 7.3
|
|
Compressor worn
|
Section 7.2
|
|
Current limit (Cd32) set to wrong value
|
See Cd32
|
|
Electronic Expansion Valve (EEV)
|
Replace
|
|
6.3Unit Runs but has Insufficient Cooling
|
|
Refrigeration system
|
Abnormal pressures
|
Section 6.7
|
|
Abnormal temperatures
|
Section 6.13
|
|
Abnormal currents
|
Section 6.14
|
|
Controller malfunction
|
Section 6.9
|
|
Evaporator fan or motor defective
|
Section 7.6
|
|
Compressor service valves or liquid line shutoff valve partially closed
|
Open valves completely
|
|
Frost on coil
|
Section 6.10
|
|
Electronic Expansion Valve (EEV)
|
Replace
|
|
6.4Unit will not Heat or has Insufficient Heating
|
|
No operation of any kind
|
Start-Stop switch (ST) OFF or defective
|
Check
|
|
Circuit breaker OFF or defective
|
Check
|
|
External power source OFF
|
Turn ON
|
|
No control power
|
Circuit breaker or fuse defective
|
Replace
|
|
Control transformer defective
|
Replace
|
|
Evaporator fan internal motor protector open
|
Section 7.6
|
|
Heat relay defective
|
Check
|
|
Heater termination thermostat open
|
|
|
Unit will not heat or has insufficient heat
|
Heater(s) defective
|
Section 7.6
|
|
Heater contactor or coil defective
|
Replace
|
|
Evaporator fan motor(s) defective or rotating backwards
|
Section 7.6
|
|
Evaporator fan motor contactor defective
|
Replace
|
|
Controller malfunction
|
Section 6.9
|
|
Wiring defective
|
Replace
|
|
Terminal connections loose
|
Tighten
|
|
Line voltage is low
|
Section 3.10
|
|
6.5Unit will not Terminate Heating
|
|
Unit fails to stop heating
|
Controller improperly set
|
Reset
|
|
Controller malfunction
|
Section 6.9
|
|
Heater Termination Thermostat (HTT) remains closed along with the heat relay
|
|
|
6.6Unit will not Defrost Properly
|
|
Will not initiate defrost automatically
|
Defrost timer malfunction (Cd27)
|
Link
|
|
Terminal connections loose
|
Tighten
|
|
Wiring defective
|
Replace
|
|
Defrost Temperature Sensor (DTS) defective or Heat Termination Thermostat (HTT) open
|
Replace
|
|
Heater contactor or coil defective
|
Replace
|
|
Will not initiate defrost manually
|
Manual defrost switch defective
|
Replace
|
|
Keypad defective
|
Replace
|
|
Defrost Temperature Sensor (DTS) open
|
Replace
|
|
Initiates but relay (DR) drops out
|
Line voltage is low
|
Section 3.10
|
|
Initiates but does not defrost
|
Heater contactor or coil defective
|
Replace
|
|
Heater(s) burned out
|
Section 7.6
|
|
Frequent defrost
|
Load is wet
|
Normal
|
|
6.7Abnormal Pressures
|
|
High discharge pressure
|
Condenser coil dirty
|
Section 7.3
|
|
Condenser fan rotating backwards
|
Section 7.3
|
|
Condenser fan inoperative
|
Section 7.3
|
|
Refrigerant overcharge or non-condensibles
|
|
|
Discharge service valve partially closed
|
Open
|
|
Electronic Expansion Valve (EEV) control malfunction
|
Replace
|
|
Low suction pressure
|
Software and/or controller configuration incorrect
|
Check
|
|
Suction Pressure Transducer (SPT) or Evaporator Pressure Transducer (EPT) failed
|
Replace
|
|
Suction service valve partially closed
|
Open
|
|
Filter drier partially plugged
|
Section 7.5
|
|
Refrigerant charge low
|
|
|
Evaporator air flow not existent or air flow restricted
|
Section 7.6
|
|
Frost on evaporator coil excessive
|
Section 6.6
|
|
Evaporator fan(s) rotating backwards
|
Section 7.6
|
|
Electronic Expansion Valve (EEV) control malfunction
|
Replace
|
|
Suction and discharge pressures tend to equalize when unit is operating
|
Compressor operating in reverse
|
Section 6.12
|
|
Compressor cycling / stopped
|
Check
|
|
6.8Abnormal Noise or Vibrations
|
|
Compressor
|
Compressor start up after an extended shutdown
|
Normal
|
|
Brief chattering when manually shut down
|
|
Compressor operating in reverse
|
Section 6.12
|
|
Mounting bolts loose or resilient mounts worn
|
Tighten / Replace
|
|
Upper mounting loose
|
|
|
Slugging loose
|
|
|
Condenser Fan
|
Bent, loose or striking venturi
|
Check
|
|
Motor bearings worn
|
Section 7.3
|
|
Motor shaft bent
|
Section 7.3
|
|
Evaporator Fan
|
Bent, loose or striking venturi
|
Check
|
|
Motor bearings worn
|
Section 7.6
|
|
Motor shaft bent
|
Section 7.6
|
|
6.9Microprocessor Malfunction
|
|
Will not control
|
Software and/or controller configuration incorrect
|
Check
|
|
Sensor defective
|
Section 7.10
|
|
Wiring defective
|
Check
|
|
Refrigerant charge low
|
|
|
6.10No Evaporator Air Flow or Restricted Air Flow
|
|
Evaporator coil blocked
|
Coil has frost build-up
|
Section 6.6
|
|
Coil dirty
|
Section 7.6
|
|
No or partial evaporator air flow
|
Evaporator fan motor internal protector open
|
Section 7.6
|
|
Evaporator fan motor(s) defective
|
Section 7.6
|
|
Evaporator fan(s) loose or defective
|
Section 7.6
|
|
Evaporator fan contactor defective
|
Replace
|
|
6.11Electronic Expansion Valve Malfunction
|
|
Low suction pressure
|
Software and/or controller configuration incorrect
|
Check
|
|
Suction Pressure Transducer (SPT) or Evaporator Pressure Transducer (EPT) failed
|
Replace
|
|
Suction Service Valve partially closed
|
Open
|
|
Filter drier partially plugged
|
Section 7.5
|
|
Refrigerant charge low
|
|
|
Evaporator air flow not existent or air flow restricted
|
Section 7.6
|
|
Evaporator coil excessive frost build-up
|
Section 7.6
|
|
Evaporator fan(s) rotating backwards
|
Section 7.6
|
|
Electronic Expansion Valve (EEV) control malfunction
|
Section 7.7
|
|
Sensor loose or insufficiently clamped
|
Replace
|
|
High suction pressure with low superheat
|
Valve contains foreign material
|
Section 7.7
|
|
Suction Pressure Transducer (SPT) or Evaporator Pressure Transducer (EPT) failed
|
Replace
|
|
Electronic Expansion Valve (EEV) control malfunction
|
Section 7.7
|
|
Powerhead improperly seated
|
Ensure powerhead is locked and in place
|
|
Liquid slugging in compressor
|
Suction Pressure Transducer (SPT) or Evaporator Pressure Transducer (EPT) failed
|
Replace
|
|
Electronic Expansion Valve (EEV) failed
|
Section 7.7
|
|
6.12Compressor Operating in Reverse
|
|
Allowing the scroll compressor to operate in reverse for more than two minutes will result in internal compressor damage. Turn the start-stop switch OFF immediately.
|
|
Electrical
|
Compressor incorrectly wired within the VFD.
|
Check
|
|
6.13Abnormal Temperatures
|
|
High discharge temperature
|
Condenser coil dirty
|
Section 7.3
|
|
Condenser fan rotating backwards
|
Section 7.3
|
|
Condenser fan inoperative
|
Section 7.3
|
|
Refrigerant overcharge or non-condensibles
|
|
|
Discharge service valve partially closed
|
Open
|
|
Electronic Expansion Valve (EEV) control malfunction
|
Replace
|
|
Suction Pressure Transducer (SPT) or Evaporator Pressure Transducer (EPT) failed
|
Replace
|
|
Discharge temperature sensor drifting high
|
Replace
|
|
Economizer Expansion Valve (EEV), Economizer Expansion Valve (ECV) failed or plugged
|
Replace
|
|
Sensor loose or insufficiently clamped
|
Replace
|
|
6.14Abnormal Currents
|
|
Unit reads abnormal currents
|
Current sensor wiring
|
Check
|
