Service Parts List
All orders and inquiries for parts must include: Parts Identification Number (PID), Model Number, Unit Serial Number, Part Number, Description of part as shown on list and Quantity required.
For parts ordering and inquiries, go to the Contact Us page on the Carrier Container website:
https://www.carrier.com/container-refrigeration/en/worldwide/locator/contact-us/
The following letter designations are used to classify parts throughout this list:
A/R = As Required
N/A = Not Available
NS = Not shown in illustration
NSS = Not sold separately - Order next higher assembly or kit
PID = Parts Identification Number − essential to identify unit configuration.
PL = Purchase Locally
SST = Stainless Steel - 300 Series unless otherwise specified.
SV = Suffix SV - added to part number designates service replacement part.

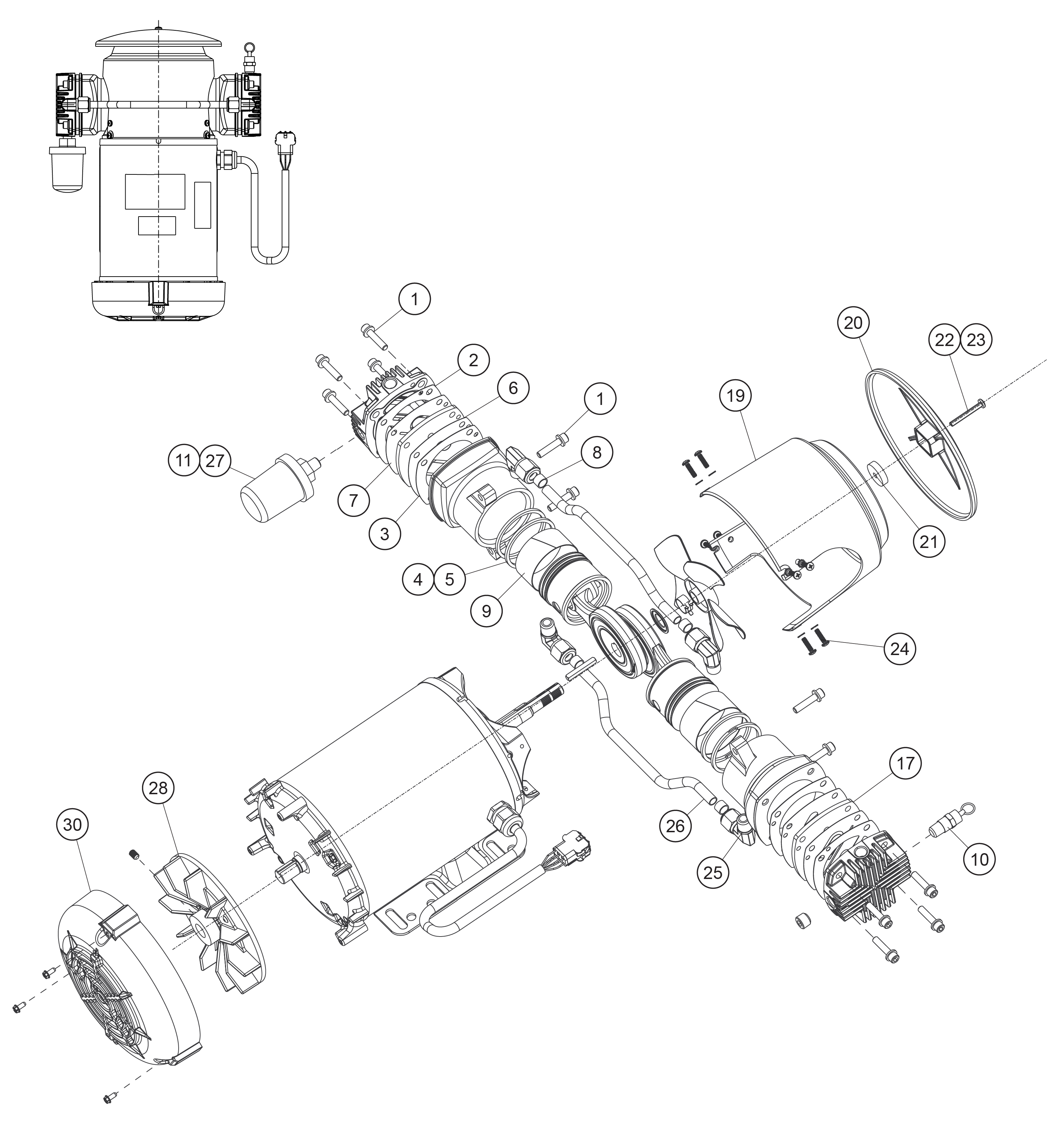

9.3Parts List for EverFRESH Air Compressor (0.75 HP)
|
Item |
Part Number |
Description |
Qty |
|
18-10185-25 |
Compressor |
|
|
|
18-10185-20 |
Compressor Minor Rebuild Kit - Includes: |
1 |
|
|
1 |
NSS |
1/4-20 Shcs Head / Cylinder Bolts |
12 |
|
2 |
NSS |
Gasket-Head |
2 |
|
3 |
NSS |
Gasket-Cylinder |
2 |
|
4 |
NSS |
Piston Seal |
4 |
|
5 |
NSS |
Piston Ring |
4 |
|
6 |
NSS |
Valve Cylinder Side of Valve Plate |
2 |
|
7 |
NSS |
Valve Head Side of Valve Plate |
2 |
|
8 |
NSS |
Compression Sleeve |
4 |
|
9 |
NSS |
Rider Ring |
2 |
|
10 |
18-10185-31 |
Relief Valve 10.1 Bar |
1 |
|
11 |
18-10185-30 |
Filter And Housing Assembly with 1/4 NPT |
1 |
|
17 |
NSS |
SS Valve Plate |
2 |
|
18-10185-22 |
Compressor Shroud Assembly - Includes: |
1 |
|
|
19 |
NSS |
Shroud |
1 |
|
20 |
NSS |
Motor End Shield |
1 |
|
21 |
NSS |
Spacer, V.O.Rated |
1 |
|
22 |
NSS |
Washer Flat #10 |
1 |
|
23 |
NSS |
Plastite #10-14 X 1.50 |
1 |
|
24 |
18-10185-33 |
8-32 X 0.375 SST Truss Head Screw |
8 |
|
18-10185-23 |
Compressor Manifold Kit - Includes: |
1 |
|
|
25 |
18-10185-34 |
Elbow Fitting |
4 |
|
26 |
18-10185-35 |
Manifold Tube (Includes 2 Sleeves Item #8) |
2 |
|
18-10185-24 |
Compressor Motor / Fan Cover Kit - Includes: |
1 |
|
|
28 |
18-10185-36 |
Motor Fan Assembly |
1 |
|
30 |
18-10185-37 |
Motor Fan Cover / Hardware |
1 |
|
27 |
Filter Media |
1 |

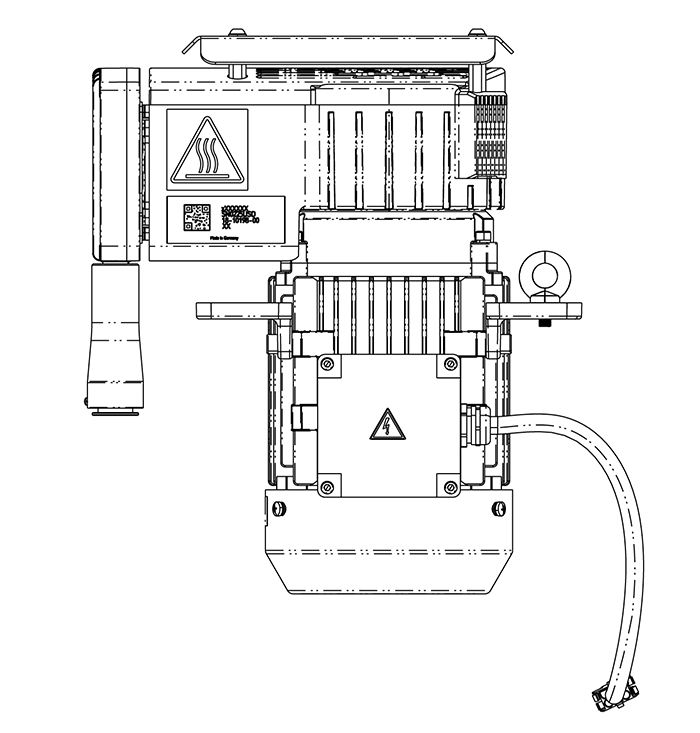

9.4Parts List for EverFRESH Air Compressor (1.1 HP)
|
Item |
Part Number |
Description |
Qty |
|
18-10198-25 |
Compressor Kit - Includes: |
1 |
|
|
NSS |
Compressor |
1 |
|
|
18-10198-01 |
Damper Assembly |
4 |
|
|
18-10198-02 |
Filter Assembly |
1 |
|
|
18-10198-20 |
Compressor Rebuild Kit - Includes: |
1 |
|
|
NSS |
Valve Plate Seal |
2 |
|
|
NSS |
Seal |
1 |
|
|
NSS |
Cylinder |
1 |
|
|
NSS |
Distance Sleeve |
4 |
|
|
NSS |
Complete Compact Piston |
1 |
|
|
NSS |
Crank |
1 |
|
|
NSS |
Oval Head Screw M6x12 |
4 |
|
|
NSS |
Cylinder Head Screw M6x100 |
4 |
|
|
NSS |
Cylindrical Pin M6x24 |
1 |
|
|
NSS |
Serrated Flange Bolt M8x22 |
1 |
|

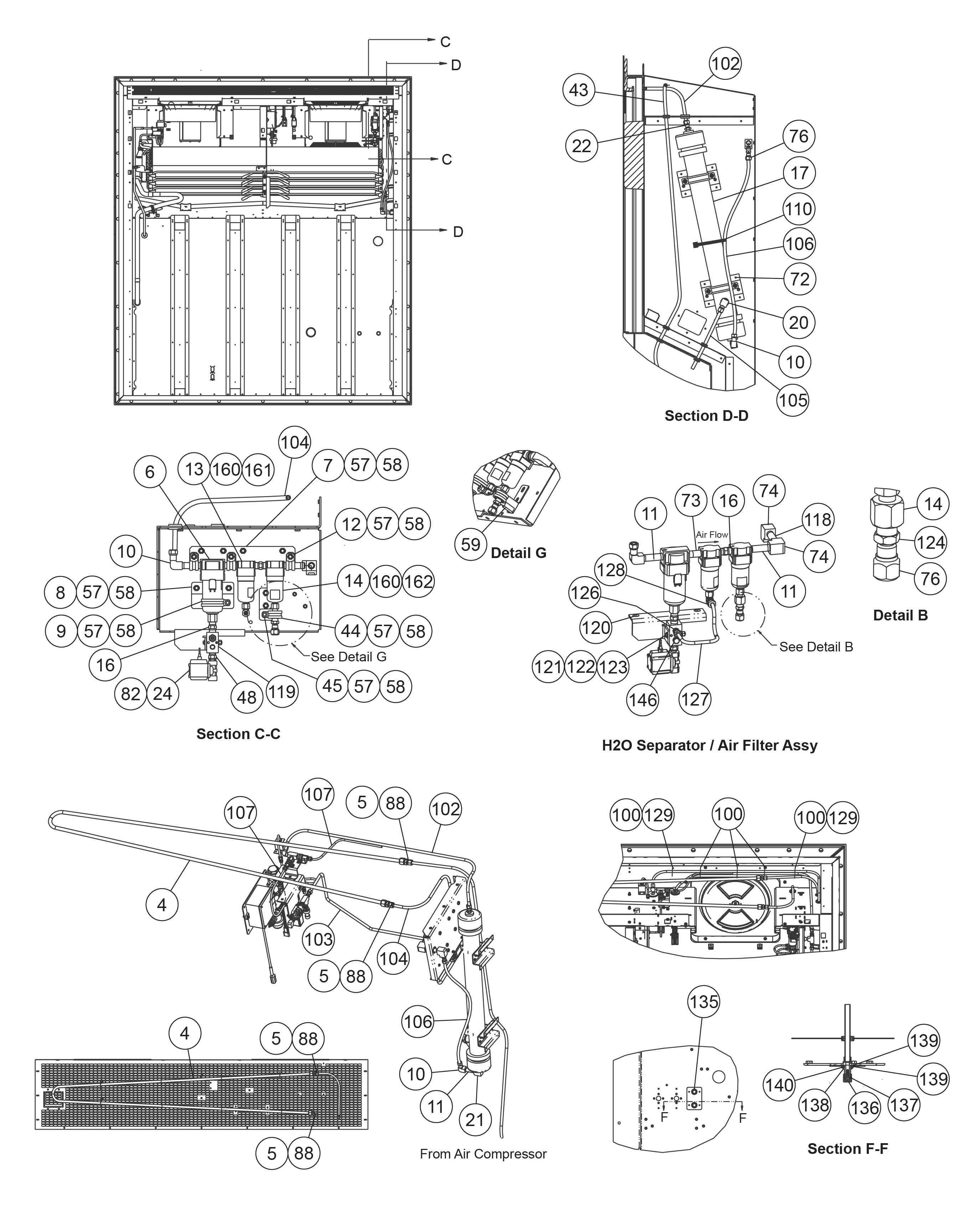

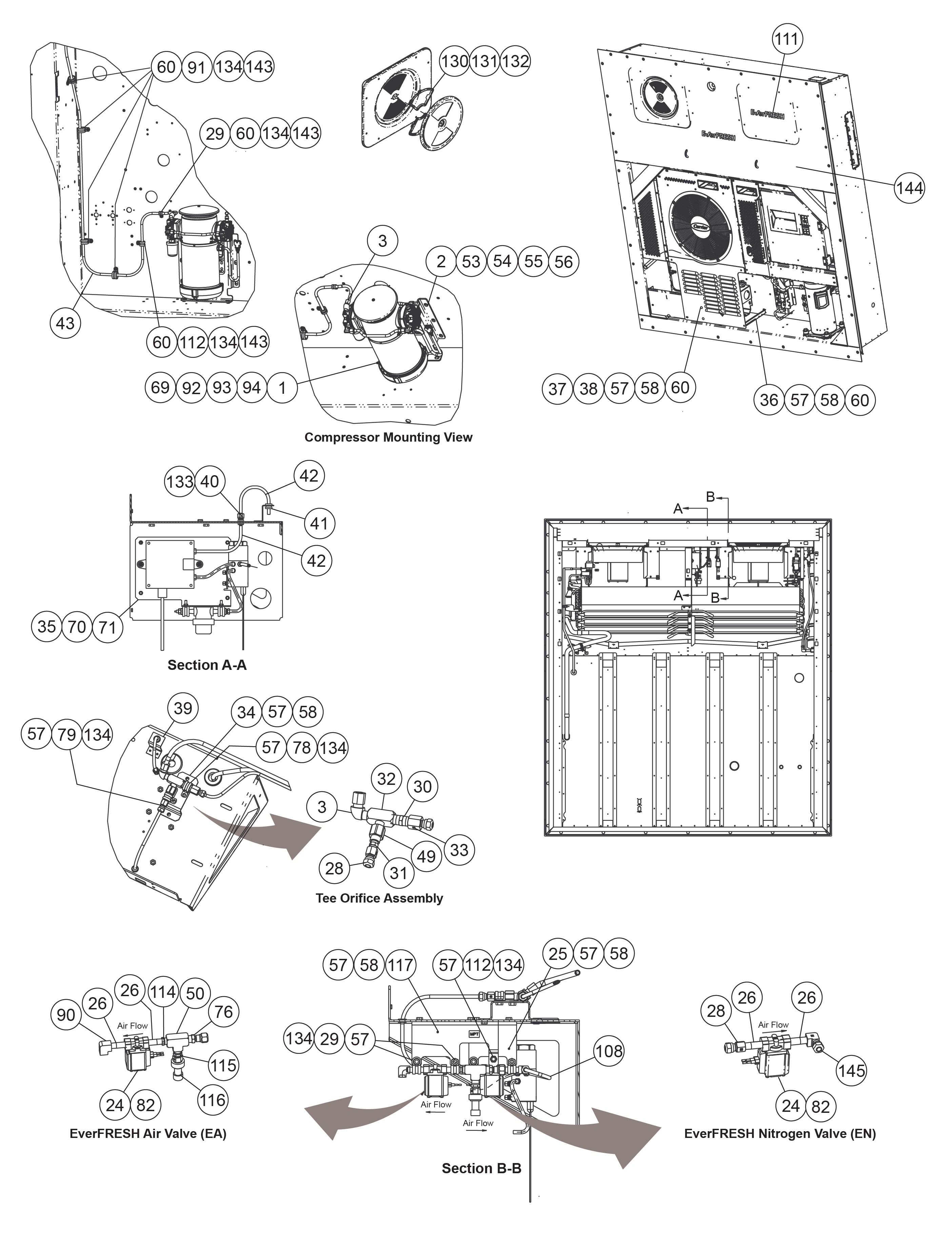

9.5Parts List for EverFRESH Kit (Compressor 0.75 HP)
|
Item |
Part Number |
Description |
Qty |
|
1 |
18-10185-25 |
Air Compressor |
1 |
|
2 |
68-18687-00 |
Bracket |
1 |
|
3 |
40-00342-03 |
Elbow, Male |
2 |
|
4 |
56-09581-00 |
Tube, Heat Trans |
1 |
|
5 |
40-66656-00 |
Adapter |
2 |
|
6 |
30-00554-00 |
Water Separator - Includes: |
1 |
|
30-00554-20 |
O-Ring |
1 |
|
|
7 |
68-18588-00 |
Bracket |
1 |
|
8 |
68-18642-00 |
Bracket |
1 |
|
9 |
34-00373-75 |
Clamp, Tube |
1 |
|
10 |
40-00671-00 |
Fitting |
2 |
|
11 |
40-01176-04 |
Nipple |
3 |
|
12 |
44-00102-51 |
Clamp, Cushioned |
3 |
|
13 |
30-00558-00 |
Filter Assembly, 5 Micron - Includes: |
1 |
|
30-00558-20pk10 |
O-Ring |
1 |
|
|
30-00558-21 |
Filter, 5 Micron |
1 |
|
|
14 |
30-00558-01 |
Filter Assembly, 0.01 Micron - Includes: |
1 |
|
30-00558-20pk10 |
O-Ring |
1 |
|
|
30-00558-22 |
Filter, 0.01 Micron |
1 |
|
|
16 |
40-00067-02 |
Nipple, Hex |
2 |
|
17 |
76-66678-01 |
Nitrogen (N2) Separator Assembly |
1 |
|
20 |
40-00342-05 |
Elbow, Male |
1 |
|
21 |
40-00060-09 |
Elbow, Male |
1 |
|
22 |
40-00343-03 |
Connector, Male |
1 |
|
24 |
40-00792-00 |
EverFRESH Air Valve (EA), Solenoid EverFRESH Nitrogen Valve (EN), Solenoid Water Drain Valve (WDV), Solenoid |
1 1 1 |
|
25 |
68-18563-01 |
Plate, Mounting |
1 |
|
26 |
40-01176-03 |
Nipple |
4 |
|
28 |
40-00345-01 |
Connector |
3 |
|
29 |
34-00373-53 |
Clamp, Tube |
5 |
|
30 |
40-00790-00 |
Orifice, N2 Supply |
1 |
|
31 |
40-00790-01 |
Orifice, N2 Sampling at Sensor |
1 |
|
32 |
40-00249-01 |
Tee, Male Branch |
1 |
|
33 |
40-00345-02 |
Connector |
1 |
|
34 |
68-18564-00 |
Channel |
1 |
|
35 |
79-66787-01 |

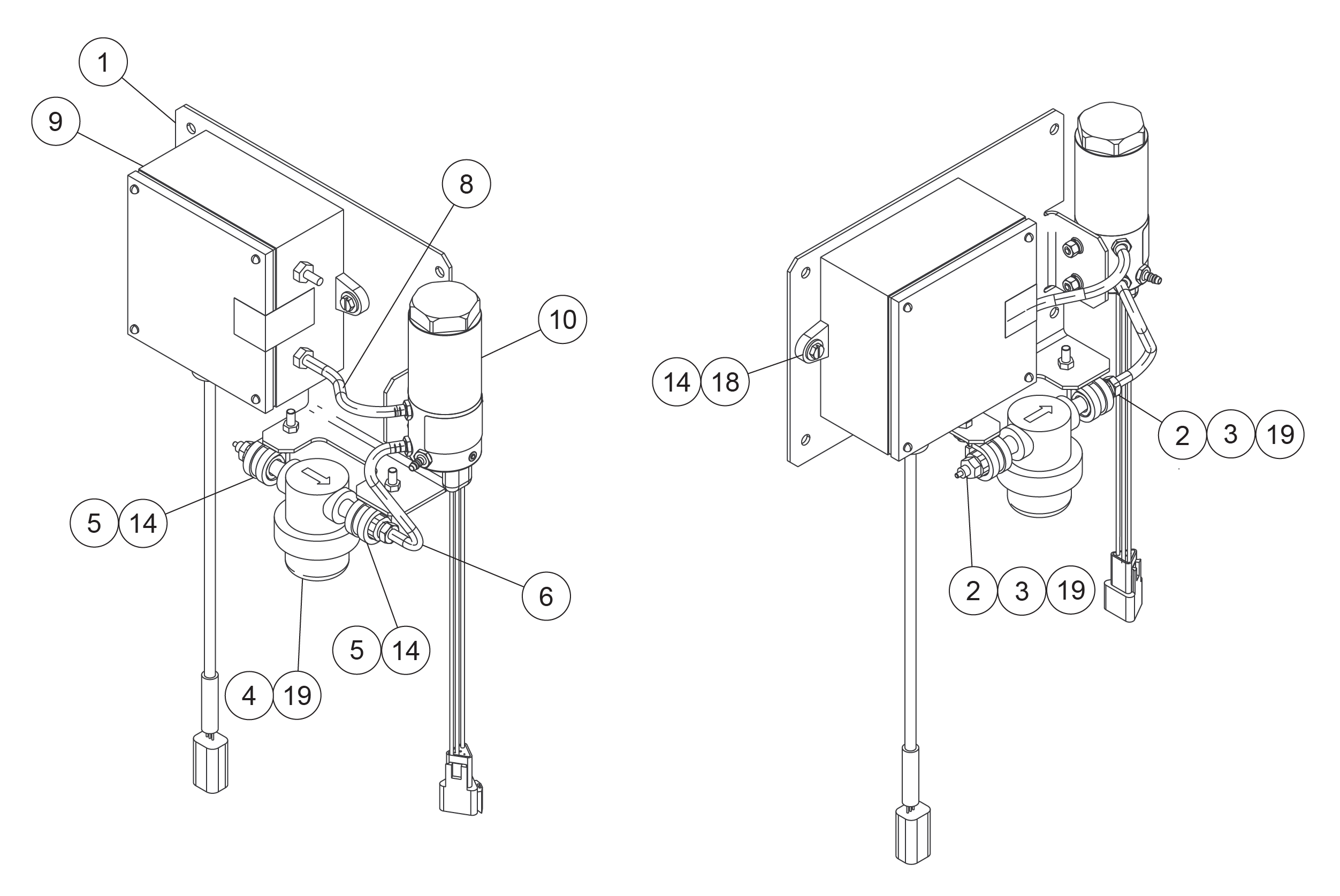

Sensor Assembly (See Parts List for Sensor Assembly) |
1 |
|
36 |
68-18541-01 |
Brace, Support |
1 |
|
37 |
68-18542-01 |
Grille |
1 |
|
38 |
42-00174-134 |
Gasket |
1 |
|
39 |
68-14739-00 |
Bracket |
1 |
|
40 |
40-00640-00 |
Union, Bulkhead |
1 |
|
41 |
58-00065-84 |
Grommet |
1 |
|
42 |
58-04497-01 |
Tube |
2 |
|
43 |
58-05188-03 |
Tube |
1 |
|
44 |
44-00102-57 |
Clamp, Cushioned |
1 |
|
45 |
68-86456-00 |
Bracket |
1 |
|
47 |
62-10530-54 |
Label |
1 |
|
48 |
40-00067-04 |
Nipple, Hex |
1 |
|
49 |
40-00794-00 |
Coupling, Pipe |
1 |
|
50 |
40-00107-02 |
Tee |
1 |
|
53 |
34-00807-08 |
Screw, Cap Hxhd |
8 |
|
54 |
34-00663-13 |
Washer, Lock |
8 |
|
55 |
66-U---1--5321-17 |
Washer, Plain |
8 |
|
56 |
34-06053-02 |
Washer |
8 |
|
57 |
66-U---1--5361-25 |
Screw, Cap Hxhd |
27 |
|
58 |
66-U---1--5321-7 |
Washer, Plain |
22 |
|
59 |
66CH---1--1172-65 |
Trim, Flexible |
1 |
|
60 |
34-06053-00 |
Washer |
9 |
|
69 |
34-06053-15 |
Washer |
6 |
|
70 |
Washer, Plain |
4 |
|
|
71 |
66-U---1--5371-6 |
Screw, Mach Hxhd |
4 |
|
72 |
34-00928-09 |
Rivet, Blind |
8 |
|
73 |
40-01176-05 |
Nipple |
1 |
|
74 |
40-00512-04 |
Elbow, Union |
2 |
|
76 |
40-00343-02 |
Connector, Male |
3 |
|
78 |
34-00373-07 |
Clamp, Tube |
1 |
|
79 |
34-00373-05 |
Clamp, Tube |
1 |
|
82 |
66-U---1--3803 |
Tube, Heat Shrink |
6 |
|
88 |
40-00601-09 |
Tube, Support |
2 |
|
90 |
40-00512-00 |
Elbow, Union |
1 |
|
91 |
44-00102-72 |
Clamp, Cushioned |
4 |
|
92 |
34-06212-13 |
Washer, Plain |
6 |
|
93 |
34-00792-06 |
Screw, Cap Hxhd |
6 |
|
94 |
34-00663-12 |
Washer, Lock |
6 |
|
102 |
58-00508-70 |
Tube |
1 |
|
103 |
58-00508-81 |
Tube |
1 |
|
104 |
58-00508-104 |
Tube, Black |
1 |
|
105 |
58-00508-105 |
Tube |
1 |
|
106 |
58-00508-106 |
Tube |
1 |
|
107 |
58-00507-24 |
Tube, Black |
2 |
|
108 |
58-00507-16 |
Tube, Black |
1 |
|
110 |
58-00079-00 |
Sta-Strap |
1 |
|
111 |
62-66172-00 |
Label |
1 |
|
112 |
44-00102-53 |
Clamp, Cushioned |
2 |
|
114 |
40-00121-01 |
Bushing |
1 |
|
115 |
06DA-403---844 |
Valve Assembly |
1 |
|
116 |
12-00352-18 |
Transducer, Membrane Pressure Transducer (MPT) |
1 |
|
117 |
68-18639-00 |
Bracket |
1 |
|
118 |
40-01176-07 |
Nipple |
1 |
|
119 |
48-00515-00 |
Manifold |
1 |
|
120 |
Bracket |
1 |
|
|
121 |
66-U---1--5371-11 |
Screw, Hxhd |
1 |
|
122 |
34-06212-08 |
Washer, Plain |
2 |
|
123 |
34-00667-08 |
Nut, Self Lock |
1 |
|
124 |
40-00253-01 |
Adapter |
1 |
|
126 |
40-00343-11 |
Connector, Male |
1 |
|
127 |
58-00507-13 |
Tube, Black |
1 |
|
128 |
40-00342-00 |
Elbow, Male |
1 |
|
129 |
58-04316-00 |
Base, Mounting |
2 |
|
130 |
58-05137-01 |
Collar |
2 |
|
131 |
42-66643-00 |
Gasket |
2 |
|
133 |
40-00601-05 |
Tube, Support |
1 |
|
134 |
66-U---1--5321-3 |
Washer, Plain |
13 |
|
135 |
69NT--35--7892 |
Plate |
1 |
|
136 |
40-66657-00 |
Cap |
2 |
|
137 |
--EC--39DM-070 |
Core |
2 |
|
138 |
40-00483-01 |
Fitting, Bulkhead |
2 |
|
139 |
34-06053-07 |
Washer |
4 |
|
140 |
34-00663-14 |
Washer, Lock |
2 |
|
143 |
66-U---1--5361-50 |
Screw, Cap Hxhd |
6 |
|
144 |
69NT--35--1618 |
Label |
1 |
|
145 |
40-00671-03 |
Fitting |
1 |
|
146 |
40-00123-01 |
Plug, Pipe |
1 |
|
147 |
66-U---1--5361-53 |
Screw, Cap Hxhd |
2 |

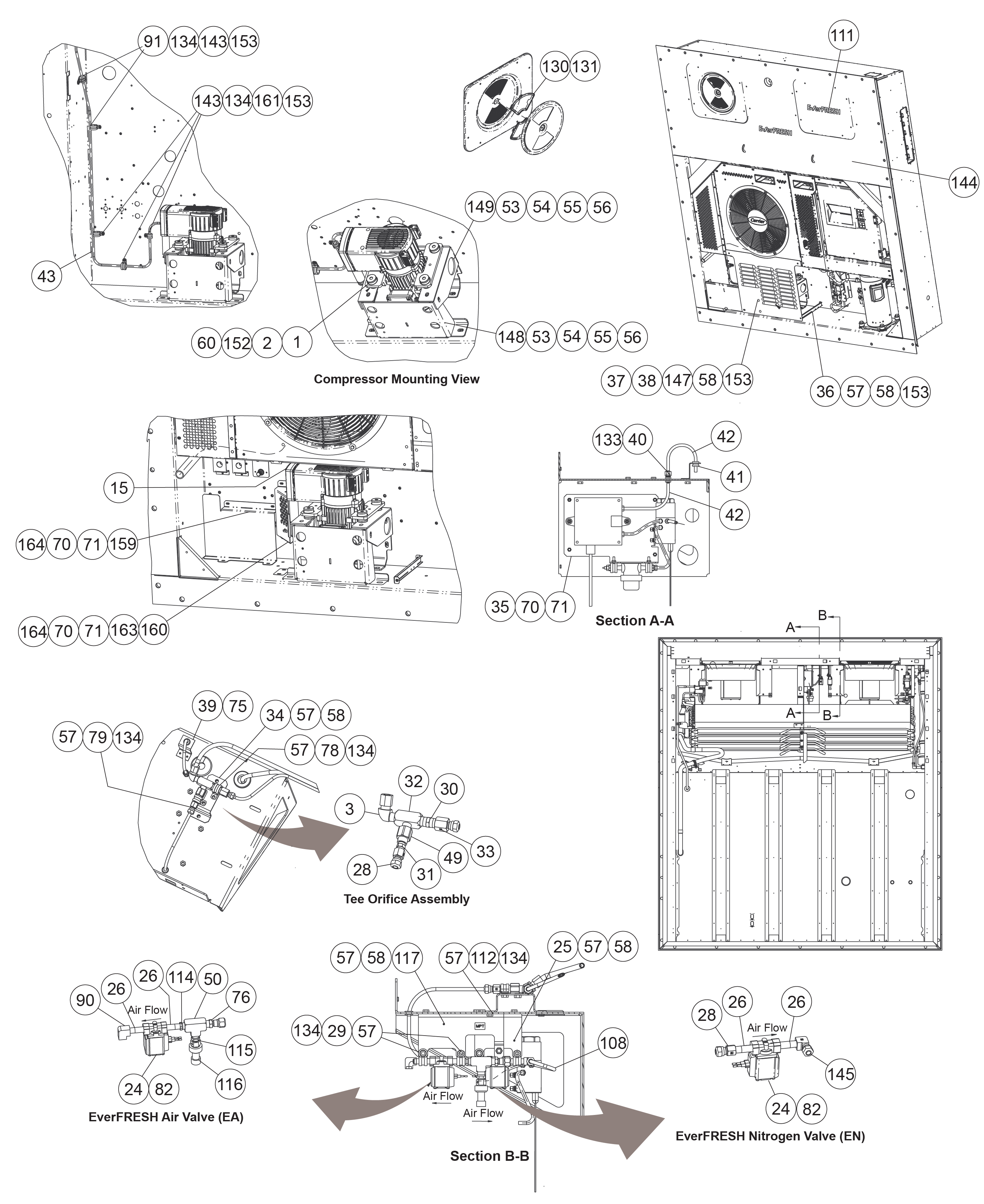

9.6Parts List for EverFRESH Kit (Compressor 1.1 HP)
|
Item |
Part Number |
Description |
Qty |
|
1 |
Air Compressor |
1 |
|
|
2 |
Damper Assembly, Compressor |
1 |
|
|
3 |
Elbow, Male |
2 |
|
|
4 |
Tube, Heat Trans |
1 |
|
|
5 |
Adapter |
2 |
|
|
6 |
Water Separator - Includes: |
1 |
|
|
O-Ring |
1 |
||
|
7 |
Bracket |
1 |
|
|
8 |
Bracket |
1 |
|
|
9 |
Clamp, Tube |
1 |
|
|
10 |
Fitting |
2 |
|
|
11 |
Nipple |
3 |
|
|
12 |
Clamp, Cushioned |
3 |
|
|
13 |
Filter Assembly, 5 Micron - Includes: |
1 |
|
|
O-Ring |
1 |
||
|
Filter, 5 Micron |
1 |
||
|
14 |
Filter Assembly, 0.01 Micron - Includes: |
1 |
|
|
O-Ring |
1 |
||
|
Filter, 0.01 Micron |
1 |
||
|
15 |
Elbow, Male |
1 |
|
|
16 |
Nipple, Hex |
2 |
|
|
17 |
Nitrogen (N2) Separator Assembly |
1 |
|
|
20 |
Elbow, Male |
1 |
|
|
21 |
Elbow, Male |
1 |
|
|
22 |
Connector, Male |
1 |
|
|
24 |
EverFRESH Air Valve (EA), Solenoid EverFRESH Nitrogen Valve (EN), Solenoid Water Drain Valve (WDV), Solenoid |
1 1 1 |
|
|
25 |
Plate, Mounting |
1 |
|
|
26 |
Nipple |
4 |
|
|
28 |
Connector |
2 |
|
|
29 |
Clamp, Tube |
4 |
|
|
30 |
Orifice, N2 Supply |
1 |
|
|
31 |
Orifice, N2 Sampling at Sensor |
1 |
|
|
32 |
Tee, Male Branch |
1 |
|
|
33 |
Connector |
1 |
|
|
34 |
Channel |
1 |
|
|
35 |
Sensor Assembly (See Parts List for Sensor Assembly) |
1 |
|
|
36 |
Brace, Support |
1 |
|
|
37 |
Grille |
1 |
|
|
38 |
Gasket |
1 |
|
|
39 |
Bracket |
1 |
|
|
40 |
Union, Bulkhead |
1 |
|
|
41 |
Grommet |
1 |
|
|
42 |
Tube |
2 |
|
|
43 |
Tube |
1 |
|
|
44 |
Clamp, Cushioned |
1 |
|
|
45 |
Bracket |
1 |
|
|
47 |
Label |
1 |
|
|
48 |
Nipple, Hex |
1 |
|
|
49 |
Coupling, Pipe |
1 |
|
|
50 |
Tee |
1 |
|
|
53 |
Screw, Cap Hxhd |
8 |
|
|
54 |
Washer, Lock |
12 |
|
|
55 |
Washer, Plain |
8 |
|
|
56 |
Washer |
12 |
|
|
57 |
Screw, Cap Hxhd |
27 |
|
|
58 |
Washer, Plain |
22 |
|
|
59 |
Trim, Flexible |
1 |
|
|
60 |
Washer |
12 |
|
|
70 |
Washer, Plain |
4 |
|
|
71 |
Screw, Mach Hxhd |
4 |
|
|
72 |
Rivet, Blind |
8 |
|
|
73 |
Nipple |
1 |
|
|
74 |
Elbow, Union |
2 |
|
|
75 |
Rivet, Blind |
6 |
|
|
76 |
Connector, Male |
3 |
|
|
78 |
Clamp, Tube |
1 |
|
|
79 |
Clamp, Tube |
1 |
|
|
82 |
66-U---1--3803 |
Tube, Heat Shrink |
6 |
|
88 |
Tube, Support |
2 |
|
|
90 |
Elbow, Union |
1 |
|
|
91 |
Clamp, Cushioned |
5 |
|
|
100 |
Sta-Strap |
5 |
|
|
101 |
Filter Assembly, Compressor |
1 |
|
|
102 |
Tube |
1 |
|
|
103 |
Tube |
1 |
|
|
104 |
Tube, Black |
1 |
|
|
105 |
Tube |
1 |
|
|
106 |
Tube |
1 |
|
|
107 |
Tube, Black |
2 |
|
|
108 |
Tube, Black |
1 |
|
|
110 |
Sta-Strap |
1 |
|
|
111 |
Label |
1 |
|
|
112 |
Clamp, Cushioned |
2 |
|
|
114 |
Bushing |
1 |
|
|
115 |
Valve Assembly |
1 |
|
|
116 |
Transducer, Membrane Pressure Transducer (MPT) |
1 |
|
|
117 |
Bracket |
1 |
|
|
118 |
Nipple |
1 |
|
|
119 |
Manifold |
1 |
|
|
120 |
Bracket |
1 |
|
|
121 |
Screw, Hxhd |
1 |
|
|
122 |
Washer, Plain |
2 |
|
|
123 |
Nut, Self Lock |
1 |
|
|
124 |
Adapter |
1 |
|
|
126 |
Connector, Male |
1 |
|
|
127 |
Tube, Black |
1 |
|
|
128 |
Elbow, Male |
1 |
|
|
129 |
Base, Mounting |
2 |
|
|
130 |
Collar |
2 |
|
|
131 |
Gasket |
2 |
|
|
133 |
Tube, Support |
1 |
|
|
134 |
Washer, Plain |
13 |
|
|
135 |
Plate |
1 |
|
|
136 |
Cap |
2 |
|
|
137 |
Core |
2 |
|
|
138 |
Fitting, Bulkhead |
2 |
|
|
139 |
Washer |
4 |
|
|
140 |
Washer, Lock |
2 |
|
|
143 |
Screw, Cap Hxhd |
6 |
|
|
144 |
Label |
1 |
|
|
145 |
Fitting |
1 |
|
|
146 |
Plug, Pipe |
1 |
|
|
147 |
Screw, Cap Hxhd |
2 |
|
|
148 |
Bracket, Weld |
1 |
|
|
149 |
Bracket, Weld |
1 |
|
|
152 |
Screw, Cap Hxhd |
4 |
|
|
153 |
Washer |
8 |
|
|
159 |
Plate |
1 |
|
|
160 |
Bracket Assembly, Heat Shield |
1 |
|
|
161 |
Clamp, Tube |
3 |
|
|
163 |
Trim, Flexible |
1 |
|
|
164 |
Washer |
8 |
9.6.1Parts List for Sensor Assembly
|
Item |
Part Number |
Description |
Qty |
|
Sensor Assembly - Includes: |
1 |
||
|
Plate |
1 |
||
|
Coupling |
2 |
||
|
Coupling |
1 |
||
|
Filter Assembly for CA Air Sampling |
1 |
||
|
Bowl, Filter |
1 |
||
|
Gasket, O-Ring |
1 |
||
|
Element, Filter |
1 |
||
|
Clamp, Tube |
2 |
||
|
Tube |
1 |
||
|
Tube |
1 |
||
|
CO2 Sensor |
1 |
||
|
O2 Sensor Assembly |
1 |
||
|
O2 Sensor |
1 |
||
|
O2 Amplifier |
1 |
||
|
Fitting, Hose |
1 |
||
|
Screw, Mach HxHd |
4 |
||
|
Washer, Plain |
2 |

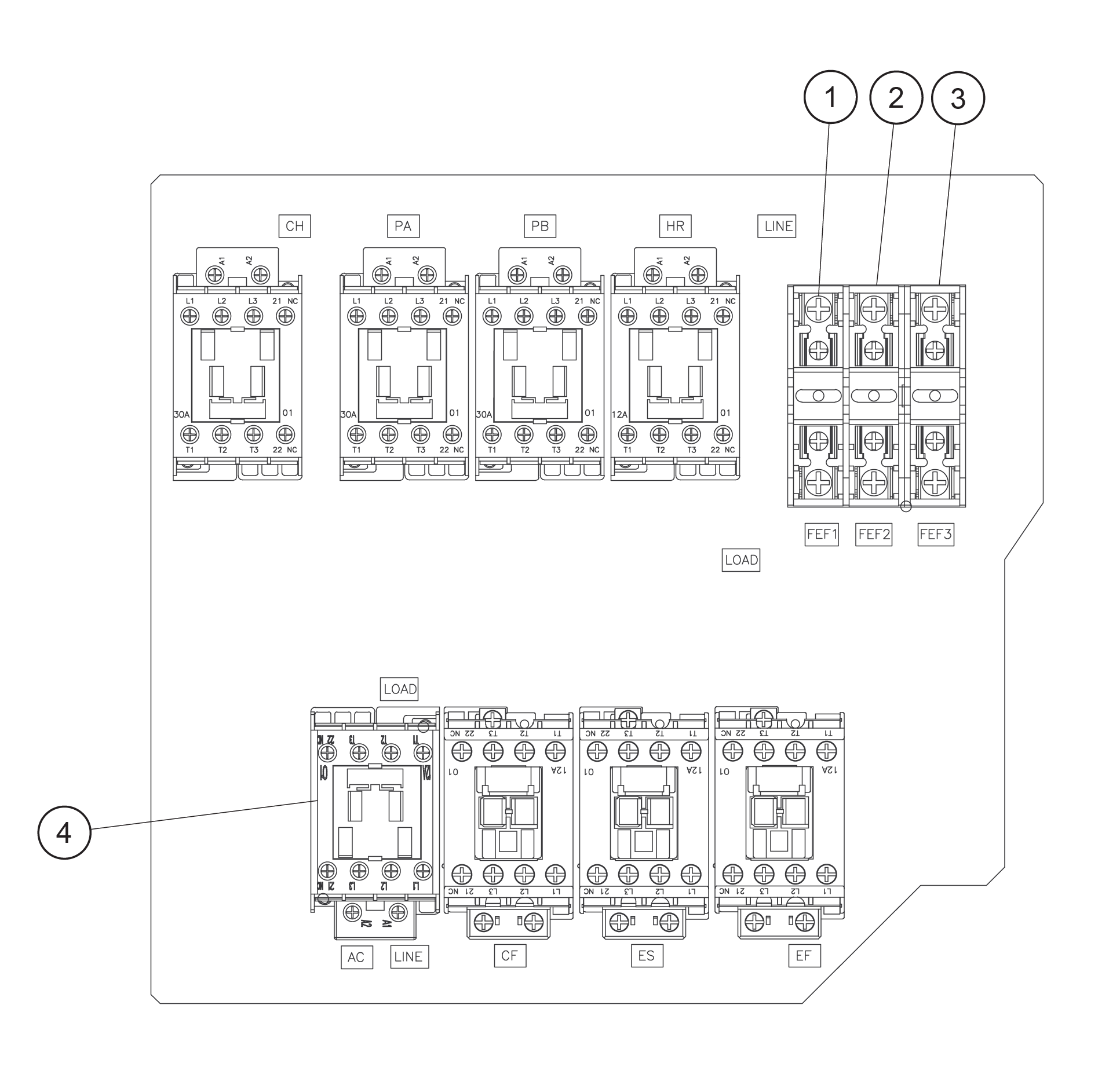

9.7Parts List for Control Box Components
|
Item |
Part Number |
Description |
Qty |
|
1 |
Fuse FEF1 |
1 |
|
|
2 |
Fuse FEF2 |
1 |
|
|
3 |
Fuse FEF3 |
1 |
|
|
4 |
Air Compressor AC Contactor |
1 |
9.8Parts List for CO2 Injection Kit (Option)

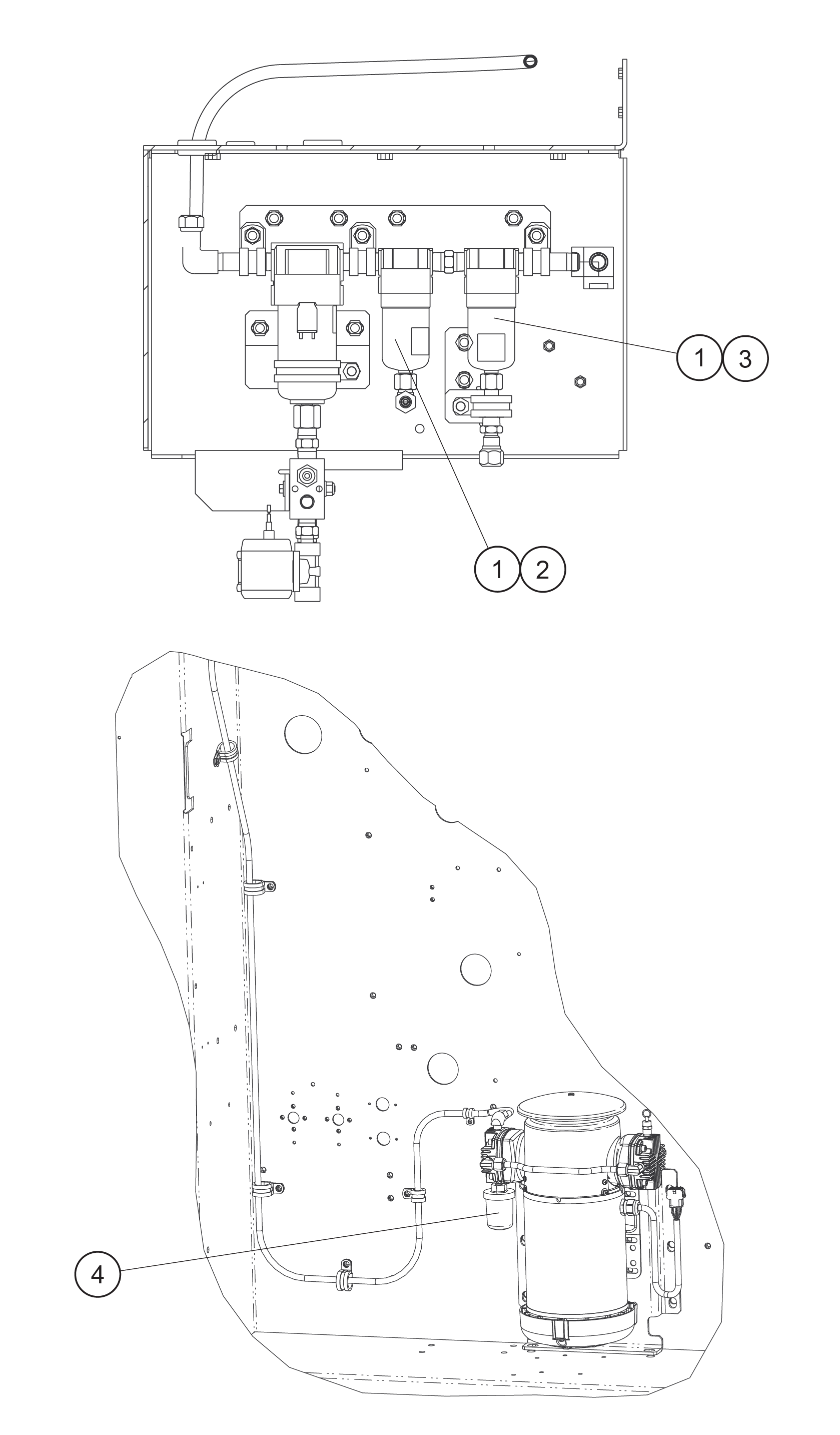

9.9Parts List for PTI Filter Kit
|
Item |
Part Number |
Description |
Qty |
|
PTI Procedure Installation Kit |
1 |
||
|
1 |
O-Ring, Filter Bowl |
2 |
|
|
2 |
Filter, 5 Micron |
1 |
|
|
3 |
Filter, 0.01 Micron |
1 |
|
|
4 |
Filter for Air Compressor Inlet, Gast Compressor |
1 |
